Mass production of special test cable for vector network analyzer - welcome to consult
Time:2022-01-20 Keywods:泰莱微波 Publisher:泰莱微波

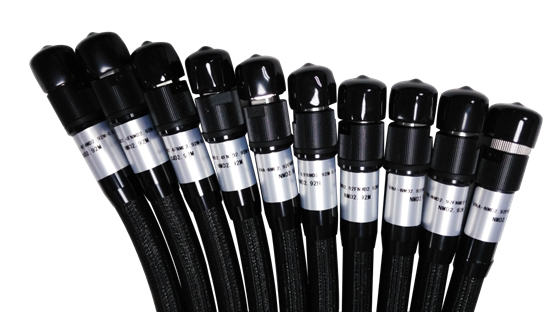

         The VNA special test cable developed by Suzhou Talent Microwave,Inc.has won the trust of customers with excellent quality after nearly 3 years of marketing and sales. Excellent mechanical phase stability and repeatability are completely comparable to imported products, and have won recognition and continuous orders from major users such as Tsinghua University, Southeast University, China University of science and technology, Chinese Academy of Sciences, China Power Group, Huawei and so on.

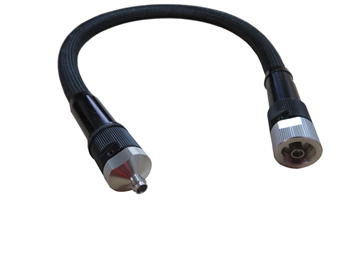

         The cable is strong with multiple protection and equipped with NMD reinforced connector, which can withstand bending, extrusion, twisting and bending, and has excellent reliability and service life. In terms of electrical performance, it has extremely stable voltage standing wave ratio, amplitude stability and mechanical phase stability. In order to meet the growing demand for orders and delivery time of customers, our company has carried out mass production for vector network test cable product line, greatly reducing the production cost, and reducing the sales price of this series of product line to feed back to customers. Welcome to consult.


Common product model:

Network sub port



Cable port 1



Cable port 2



Frequency




Standing wave ratio



Amplitude stability



Phase stability




Cable length

3.5mm



NMD3.5mm

female

NMD3.5mm male

26.5G

1.25max













<±0.05dB



<±2.5°


25in (630mm)

或3.5mm female

2.92mm



NMD2.92mm

female

NMD2.92mm male

40G

1.3max

<±3.0°


25in (630mm)

或2.92mm female

2.4mm



NMD2.4mm

female

NMD2.4mm male

50G

1.3

max

<±3.5°


25in (630mm)

或2.4mm female

1.85mm



NMD1.85mm

female

NMD1.85mm male

67G

1.40

max

<±6.5°


25in (630mm)

或1.85mm female





For more information, please contact us:

Suzhou Talent Microwave,Inc.


Telephone0512-6265 79750512-6123 6895

Fax:0512-6295 8186

Mailboxsales@rebes.netzl@rebes.net
