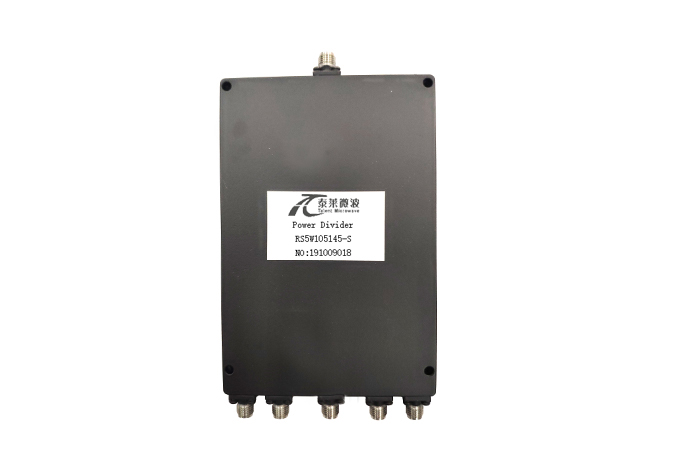

RS5W105145-S
power divider RS5W105145-S covers the range 10.5-14.5 GHz, while our complete line of power dividers cover frequency ranges up to 67 GHz. Any Talent model can be customized to suit your specific performance or package requirements at little to no extra cost. Talent is ISO-9001 registered
| Frequency(GHz) Min |
10.5 |
| Frequency(GHz) Max |
14.5 |
| Splitter Ways |
5Way |
| Isolation(dB) |
18 |
| Insert. Loss(dB) |
1.6 |
| Phase Balance(°) |
7 |
| Amp Balance(dB) |
0.6 |
| VSWR |
1.6 |
| Connector |
SMA |
| Power(W) |
30 |
| Operating Temperature |
-55-+85℃ |
| Specification |
Click to download the specification |
