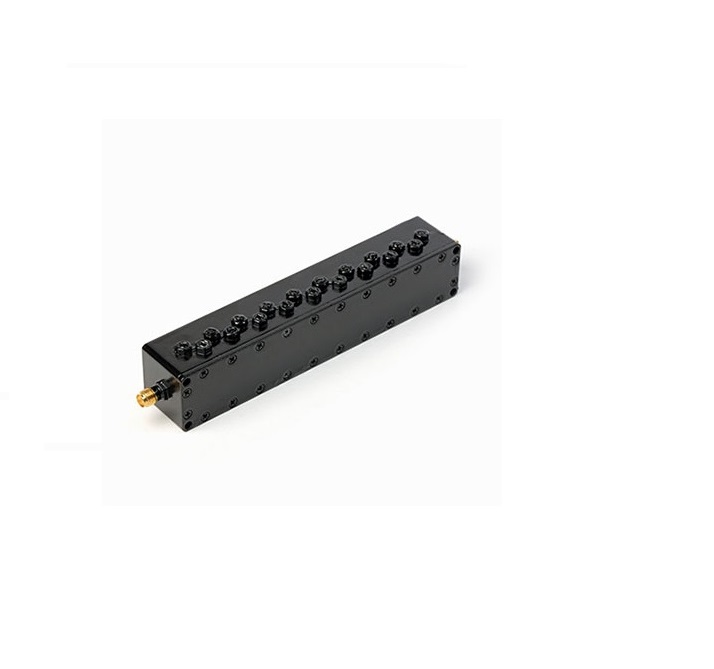

TLHF-1G2-3G-L
Rf filter model TLHF-1G2-3G-L is a small-volume high-pass filter with an operating frequency covering 1.2-3GHz, with insertion loss below 1.2dB, standing wave ratio of 1.8, and rejection rate of more than 50dB. Coaxial SMA-Female connector is used.
Frequency(GHz) Min1.2
Frequency(GHz) Max3
Out of band suppression (dB)>50dB@dc-0.96Ghz
Insert. Loss(dB)2.0000
Connector Type1SMA Female
VSWR1.8000
Specification Click to download the specification
