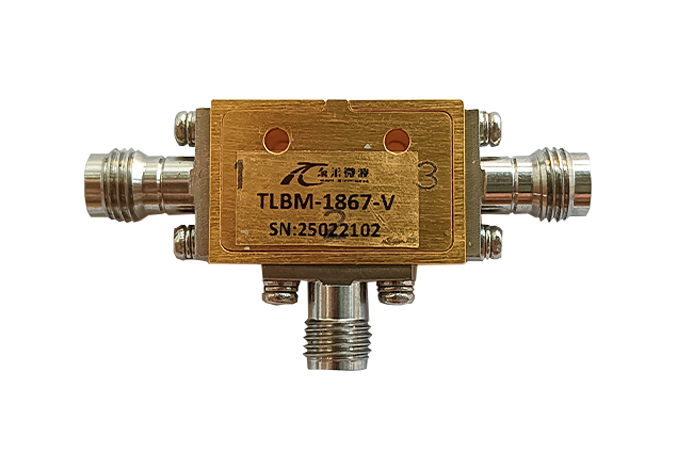

TLBM-1867-V
TLBM-1867-V is a dual balance mixer. The mixer covers the LO and RF frequency from 18 to 67 GHz with an extremely broad IF output from DC to 21 GHz. The mixer offers a conversion loss of 9 dB typical and LO input power of 15 dBm typical.
RF frequency (GHz)18-67
LO frequency (GHz)18-67
IF Frequency(GHz)DC-21
Frequency conversion loss (DB)9
RF Connectors1.85mm Female
Specification Click to download the specification
