TLLA12G15G-50-BPF
TLLA12G15G-50-BPF is a low noise amplifier with a minimum small signal gain of 50 dB and a nominal noise figure of 1.8 dB across the frequency range of 12 to 15 GHz. The DC power requirement for the amplifier is +12 V DC/90 mA. The input and output port configuration offers coax adapter structure with SMA female.
Frequency(GHz) Min12
Frequency(GHz) Max15
Gain (dB)50
Gain flatness (± dB)2
Noise Figure (dB)1.8
P1dB(dBm)10
VSWR2
ConnectorSMA
Specification Click to download the specification
Inquiry form
Relevant recommendations

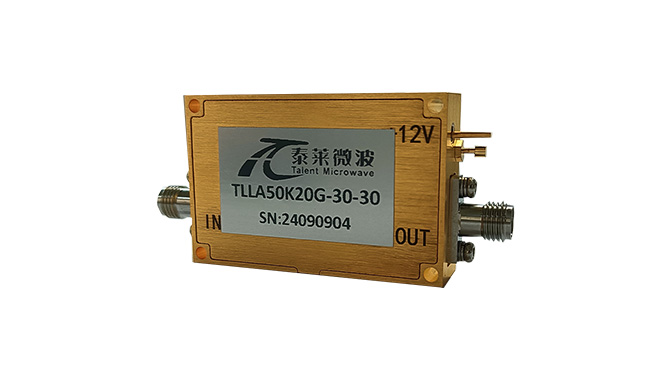

TLLA50K20G-18-30
