Home > Products > Connectors/Adapters > RF Coax Adapters > NMD Coax Adapter > NMD3.5F2.4F

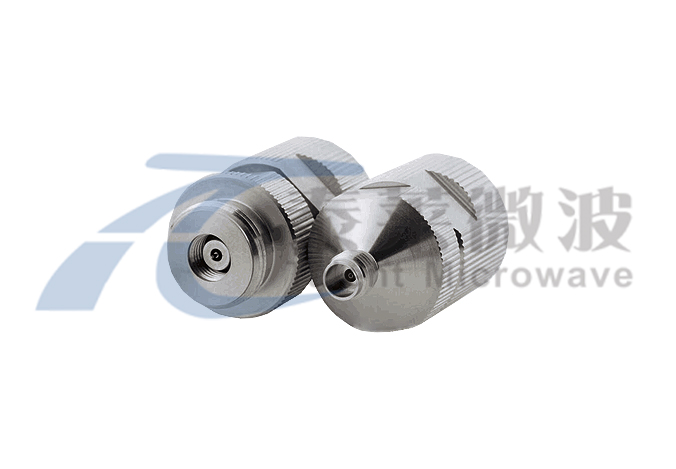

NMD3.5F2.4F
NMD3.5mm adapter NMD3.5F2.4F is part of a very large selection of in-stock interconnect RF components. Our NMD3.5mm to 2.4mm adapter is a coaxial adapter design with a 50 Ohm impedance. This 50 Ohm NMD3.5mm adapter is manufactured to precise RF adapter specifications and has a maximum VSWR of 1.15:1.
Frequency(GHz)DC-26.5
VSWR1.15
seriesBetween Series
Body StyleStraight
InterfaceNMD3.5mm
Interface 1 polarityFemale
Interface 22.4mm
Interface 2 polarityFemale
Specification Click to download the specification
